Caratteristiche
1. Use high brightness SMD 3030 LED chip, up to 150lm/w.
2. Inventronics LED Drivers, AC 90V~305V, PF>0.98, THD>15%, constant current driver design.
3 . Light transmittance of PC is more than 93%.
4. Multiple angles are available for different lighting places (15°/30°/45°/60°).
5. IP66 rating is applicable to the outdoor environment.
6. Hollow air convection heat dissipation design, good heat dissipation, and long lifespan.
7. Working environment in -35℃ to 55℃.
| Power |
300-600W |
800-1200W |

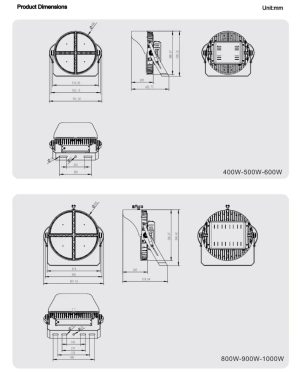

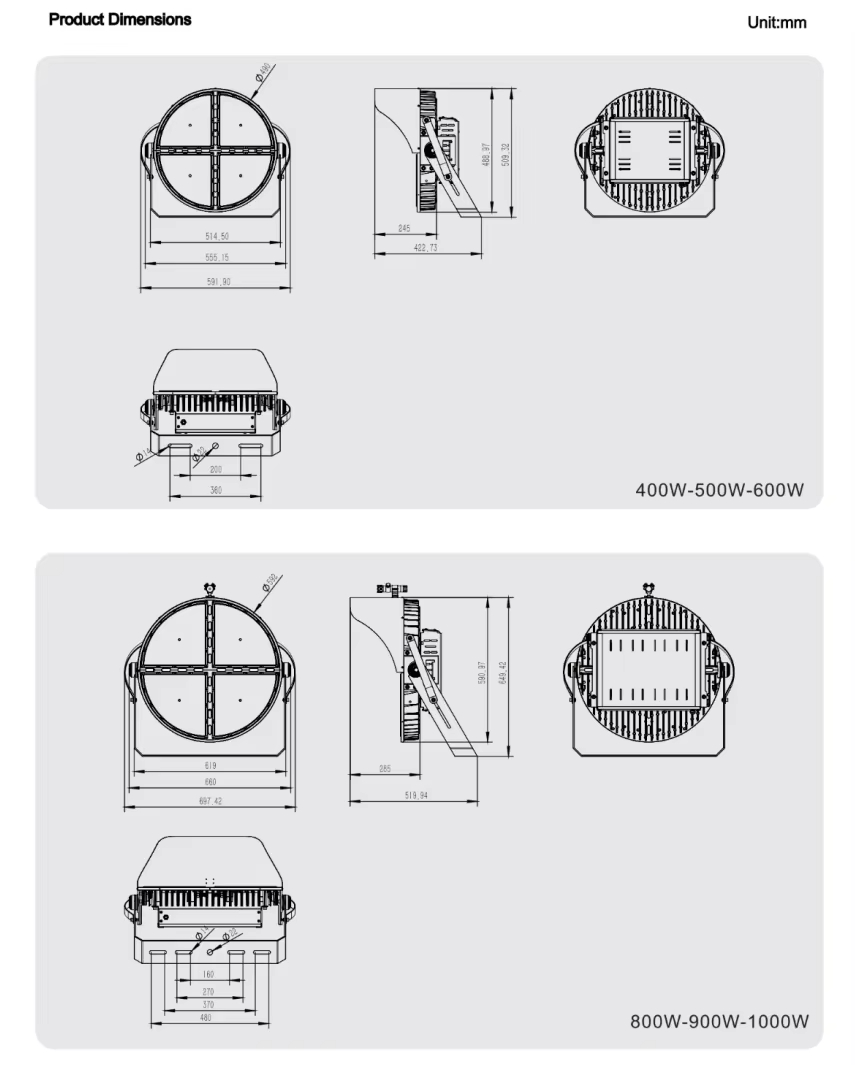

| Dimension |
592*509*423mm |
697*649*520mm |
| Luminous Flux |
140lm/w±5% |
|
| LED Source |
960PCS Lumileds 3030SMD |
1632PCS Lumileds 3030SMD |
| Input Voltage |
AC100~277V |
|
| Frequency Range |
50~60Hz |
|
| Total Harmonic Distortion |
<20% (Typical : 10%) |
|
| Color Temperature |
2700-6500K |
|
| Color Rendering Index |
CRI>70/80 |
|
| IP Rating |
IP66 |
|
| Beam Angle |
10°/30°/45°/60°/90° |
|
| Housing Color |
Black |
|
| Working Life |
>50,000 hours |
|
| Warranty |
5 years |
|
| Working Environment |
-30ºC~+50ºC, 10%~90% RH |
|

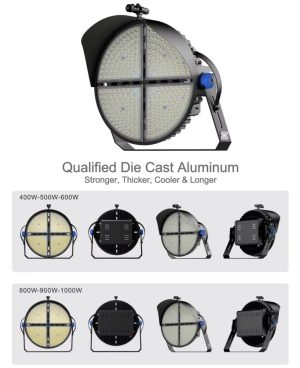

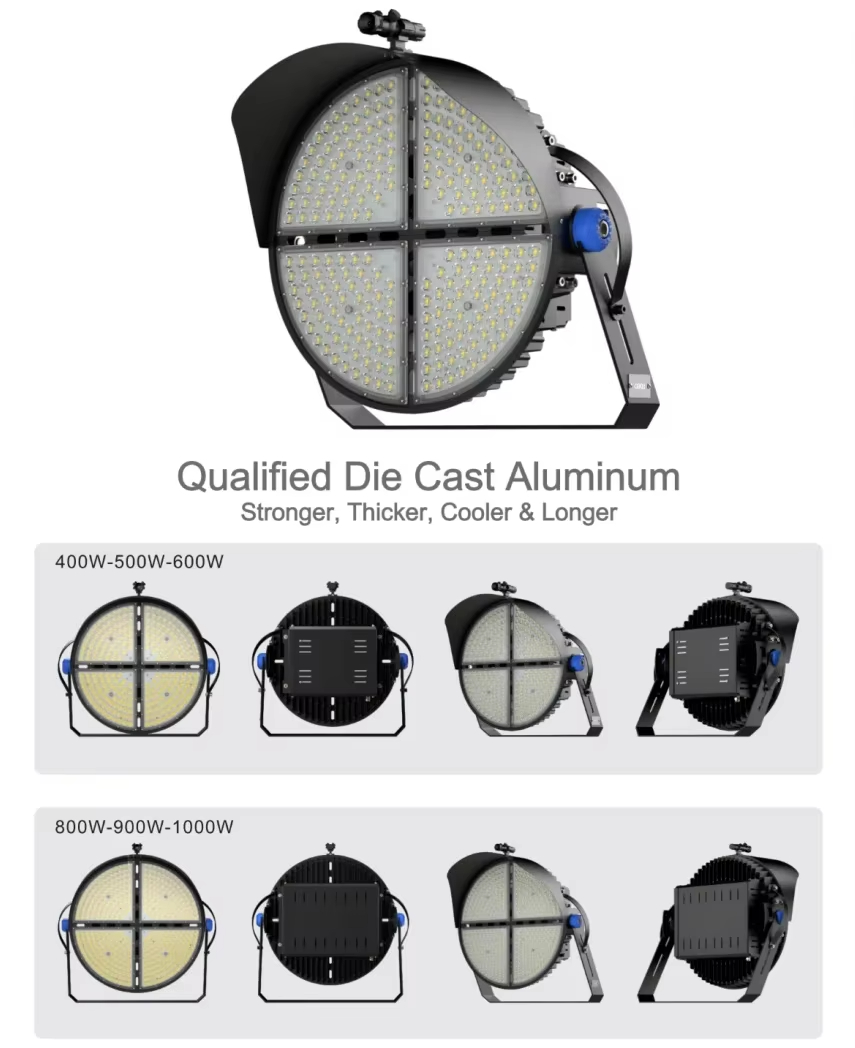

| Body & Shade Material |
Aluminum housing & Annular lens |
|
| Where Can Use | Applicable for Building external wall,square,project lighting, sport field, high masts, warehouse, display rack, tunnel, football field etc. | |
